Product Description
All of our products are custom made from dimension, color, material requirment, cable length, tracks pitch, total thickness etc..
Also add special structure to make the products more attractive, like backlight, fluorecent etc..
Expect for getting your design idea, then we will work hard together to achieve it.
Technical Specification
| Environmental |
Operating Tem |
From -20 to 65 °C/ -4 to 149 °F |
| Storage Tem |
From -40 to 85 °C/ -40 to 185 °F |
| Seal |
3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. |
| Special sealing options are available for wet environments. |
| Mechanical |
Travel |
.007 inches to .015 inches |
| Operating Force |
4oz to 8oz |
| Electrical |
Operating Voltage |
30 volts maximum |
| Operating Current |
10 microamps to 100 milliamps, resistive |
| Closed Circuit Resistance |
100 ohms typical, dependent on size and layout |
| Open Circuit Resistance |
10 megohms |
| Operating Power |
1 watt maximum |
| Circuitry |
X-Y matrix or one side common |
Our advantage
1. 20 years' producing history and 10 years' exporting experience.
2: Stable and experienced working team: more than 80% of the staffs have been working in our factory for more than 6 years.
3: Professional engineering team will offer technical support in development step of new project.
4. Provide one-stop production and assembly service from custom membrane switch to PCBA, enclosure, back plate etc.
5. Using high standard mould to assure the products with high quality and precise dimensions.
6. In-house 100% functionally tested.

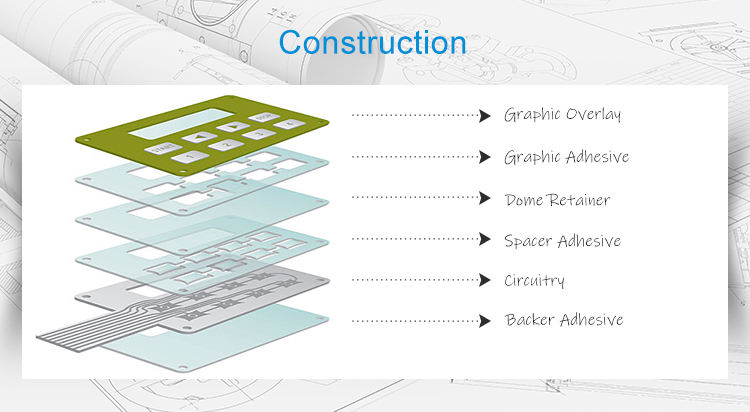

Product Details
Custom Process
